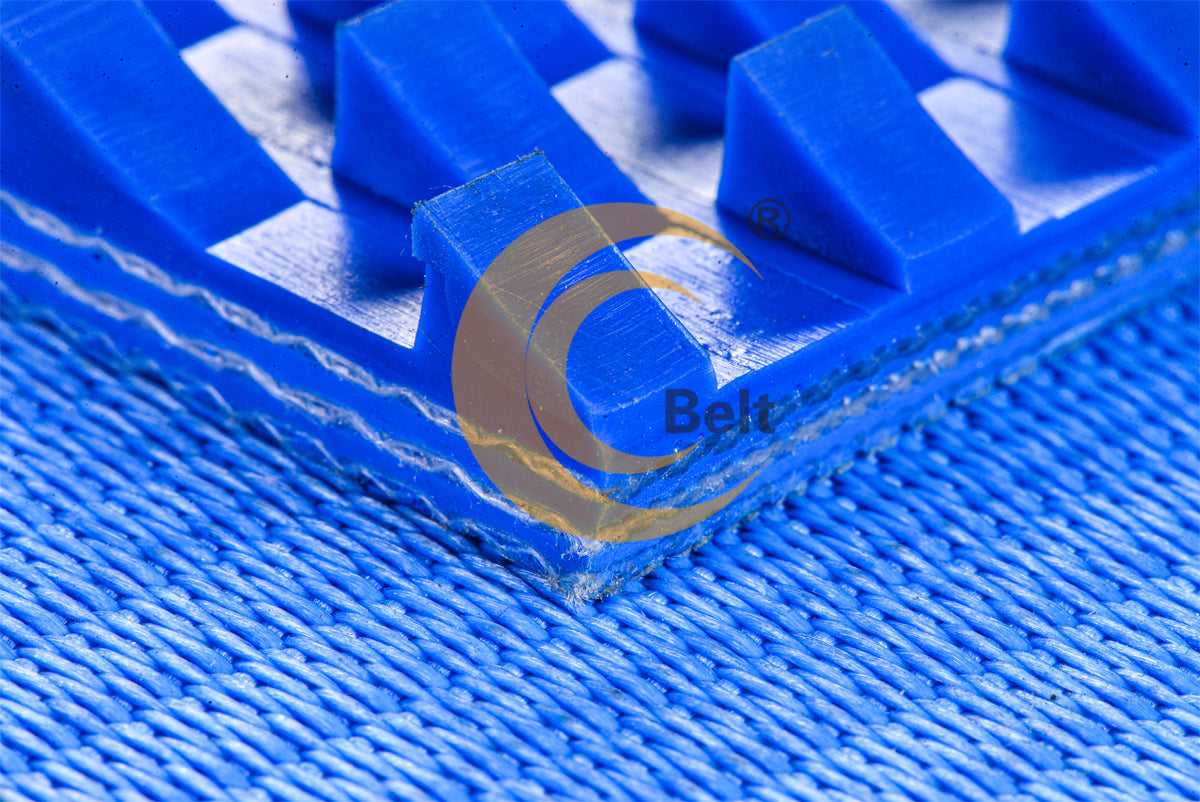

The AEF900/3:0+7.0T1/11.5SB Conveyor Belt is engineered for demanding stone and marble processing applications, offering exceptional durability and strength. This high-performance belt is designed to withstand abrasive materials, high working loads, and intense processing conditions.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| AEF900/3:0+7.0T1/11.5SB | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF LINES AND PRODUCTS | |
| GENERAL TRANSPORT | |
| HEAVY DUTY | |
| ESPECIALLY FOR STONE PROCESSING | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 11.5 mm |
| No. of Plies | 3 |
| Fabric | Polyester (AEF) |
| Weft | Flexible |
| Weight | 8.6 kg(s)/㎡ |
| Working Temperatures | -10 ºC to + 70 ºC |
| 1. Top cover | |
| Thickness | 7.0 mm |
| Material | PVC |
| Color | Sky Blue (SB) |

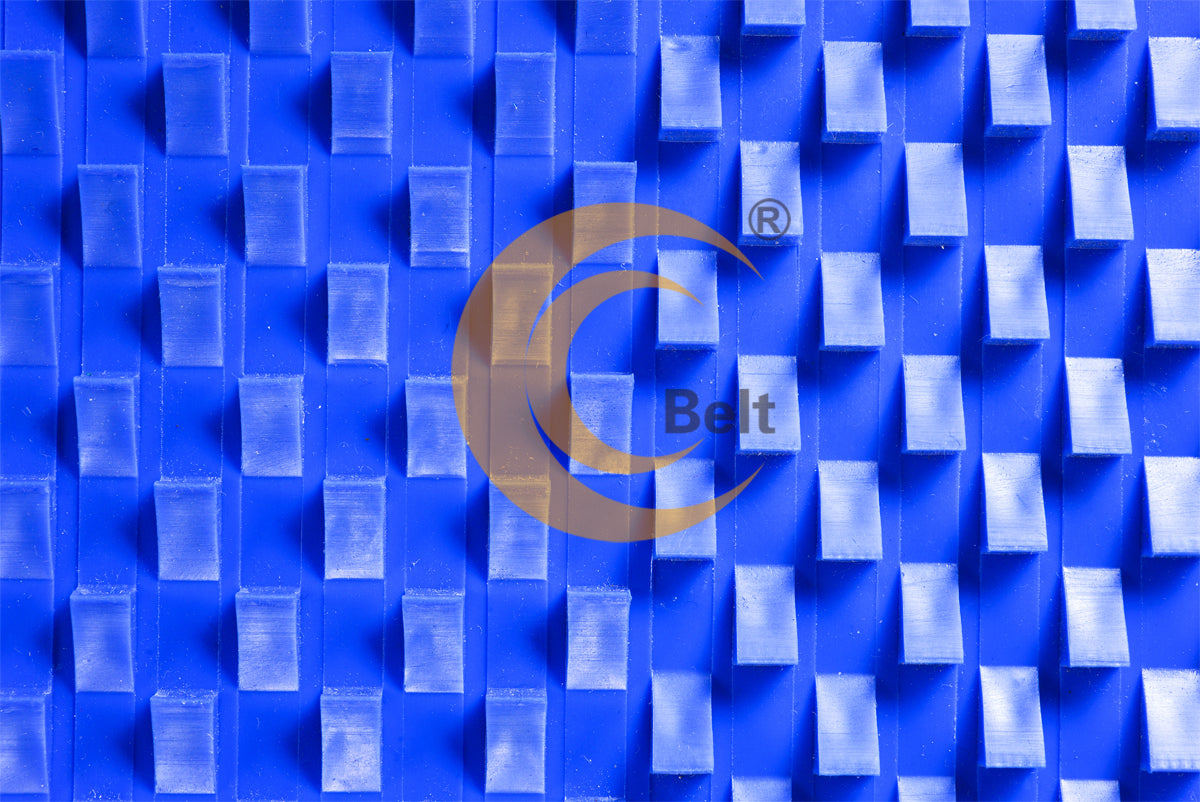

| Surface | One Way Tooth (T1) |
| Hardness | 80 ShA |
| 2. Internal layer(s) | |
| Material | PVC |
| Color | Sky Blue (SB) |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Sky Blue (SB) |
| Surface | Fabric with Impregnation |
| Hardness | - |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 900 |
| Max. Suggested Load(N/mm) | 50 |
| Working Load 1% Elongation(N/mm) | 60 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.35 |
| REMARKS | |
| Max. Manufacturing Width | 3000mm |
| Standard Width | 2000mm, 3000mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 350 mm |
| Back Flexing | 400 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | Yes |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Step Joint |
| Welding Temperature（°C） | 175 °C ± 10 °C |
| Pressure | 2 bar |
| Cooling | Cool Immediately |
