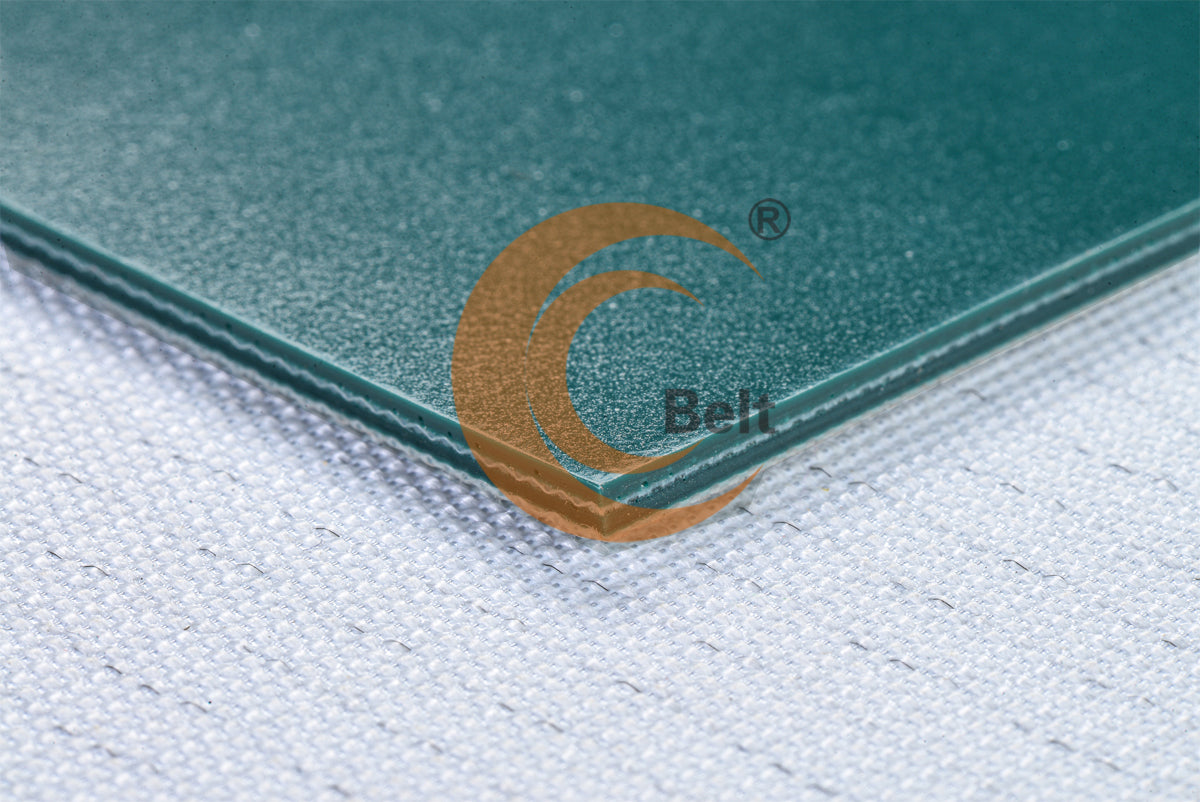

Meticulously crafted to meet the highest standards of the food industry, This PolyUrethane belt combines exceptional food-grade characteristics, FDA approval, and anti-static properties to ensure the utmost hygiene, safety, and reliability.
Engineered with precision, it is especially suitable for food processing applications where quality is non-negotiable.
Elevate your food industry operations with this top-tier conveyor belt, delivering uncompromising quality and performance.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EM200/2:0+0.7/2.0AGPU/AS | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF LINES AND PRODUCTS | |
| GENERAL TRANSPORT | |
| ESPECIALLY FOR FOOD INDUSTRIES | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 2.0 mm |
| No. of Plies | 2 |
| Fabric | Polyester(EM) |
| Weft | Rigid |
| Weight | 2.40kg(s)/㎡ |
| Working Temperatures | -10 ℃ to + 70 ℃ |
| 1. Top cover | |
| Thickness | 0.7 mm |
| Material | PU |
| Color | green |
| Surface | Glossy |
| Hardness | 92 ShA |
| 2. Internal layer(s) | |
| Material | PU |
| Color | green |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare Fabric |
| Hardness | - |
| Anti-static Yarn | Yes |
| BELT TENSION: | |
| Tensile Strength(N/mm) | |
| Max. Suggested Load(N/mm) | 200 |
| Working Load 1% Elongation(N/mm) | 10 |
| 12 | |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.17 |
| REMARKS | |
| Max. Manufacturing Width | 4000mm |
| Standard Width | 2000mm, 3000mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 30 mm |
| Back Flexing | 50 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | No |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | Yes, FDA |
| Oil Resistant | Yes |
| Flame Resistant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| High Temperature | Yes |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Yes |
| Welding Temperature（°C） | 175 °C ± 10 °C |
| Pressure | 2 bar |
| Cooling | Cool Immediately |
